Glulam Beam Types & Dimensions

For an up to date price list please email info@mirabilia-uk.co.uk or call +447795 096 132.

Please note – there is a variety of stock Glulam beams available as listed below, in addition we are able to supply a vast selection of bespoke dimensions, please contact us if you require specific dimensions not listed below.

Stock Glulam Beams – Specification and Dimensions:

GL24h  60mm width (available in 120/140/160/200mm height)

GL24h  80mm width (available in 100/120/140/160/180/200/240mm height)

GL24h  100mm width (available in 100/160/200/240mm height)

GL24h 120mm width (available in 120/160/200/240/280mm height)

GL24h 140mm width (available in 140/200/240/280mm height)

GL24h 160mm width (available in 160/200/240mm height)

GL30c 160mm width (available in 280/320/360mm height)

GL24h 180mm width (available in 180mm height)

GL24h 200mm width (available in 200/240/280/320mm height)

GL24h 220mm width (available in 220mm height)

GL24h 240mm width (available in 240mm height)

Bespoke Dimensions and Strength Classes

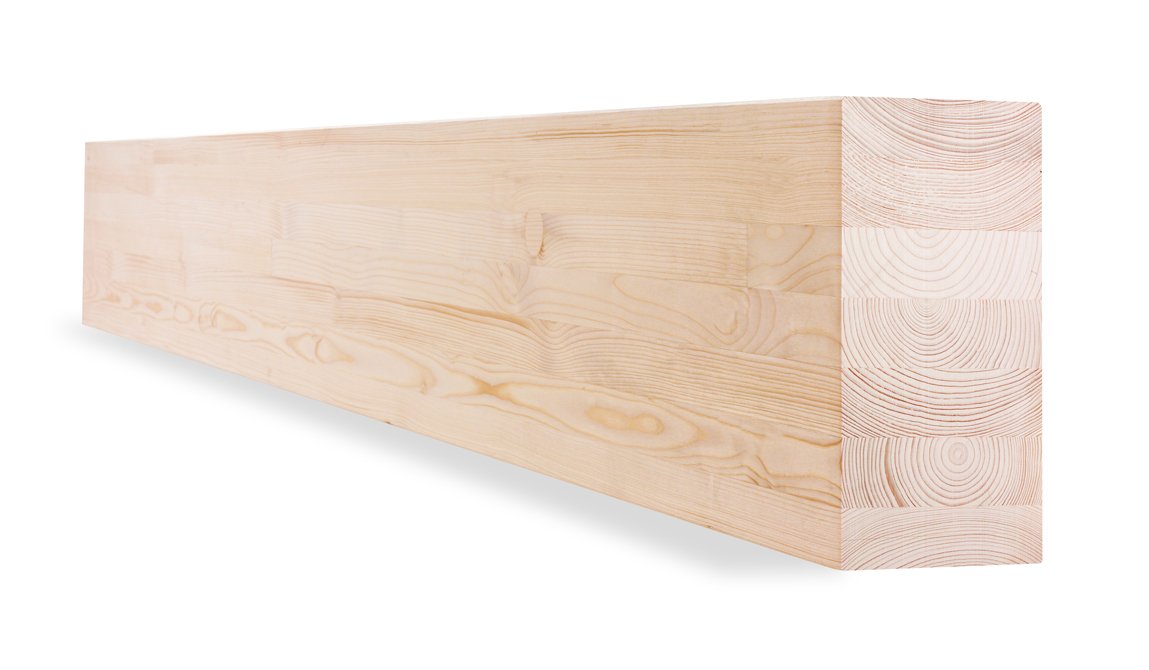

Standard Parallel Sided Glulam Beams, Specification and Dimensions:

Strength Classes: GL24h, GL28c and GL30c

Dimensions: Width –     50mm, 60mm & 80mm (GL24h)

100mm – 260mm (in 20mm increments – all strength classes possible)

280mm – 360mm (on request)

**planing is possible on widths, maximum planing depth is 20mm

Height – 100mm – 2240mm (in 40mm increments)

Minimum Length: 2000mm (stock beams); 5150mm (non standard – on request)

Maximum Length: 55000mm (this depends on the practicality of transporting it to the final location)

Stud and Rimboard Sized Parallel sided Beams,  Specification and Dimensions:

Surface Quality: Visual and non-visual quality available

Strength Classes: GL24h

Dimensions: Width – 50mm, 60mm & 80mm (GL24h)

**planing is possible on widths, maximum planing depth is 20mm

Height – 120mm – 320mm (in 40mm increments)

Minimum Length: 2000mm (stock beams); 5150mm (non standard – on request)

Maximum Length: 24000mm

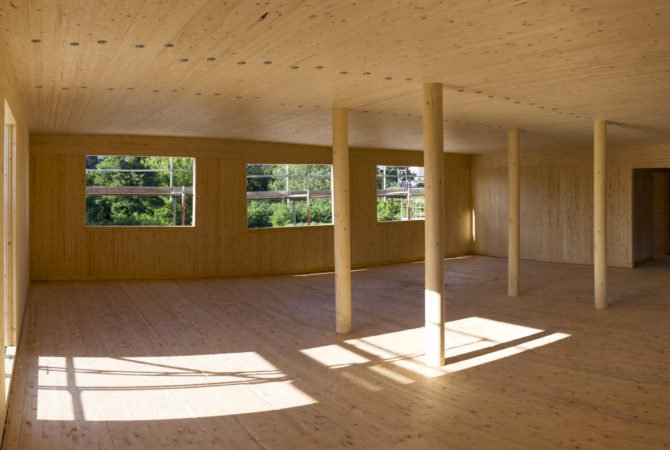

Round Beams and Columns,  Specification and Dimensions:

Strength Classes: GL24h

Dimensions: Diameter –  50mm, 60mm & 80mm (GL24h)

Height – 120mm – 240mm (in 20mm increments)

Minimum Length: N/A

Maximum Length: 12000mm
